In today’s high-performance electronic environments, protection against moisture, chemicals, dust, and temperature extremes is more important than ever. From aerospace systems to automotive electronics and consumer gadgets, electronic assemblies face exposure to harsh conditions that can compromise their reliability. That’s where Conformal Coating Solutions play a critical role. These specialized coatings form a thin, protective film over electronic circuitry, safeguarding it from a variety of environmental threats.
This article explores the value, process, materials, and applications of Conformal Coating Solutions while highlighting how they help manufacturers improve product lifespan, reliability, and compliance with safety standards.
What Are Conformal Coating Solutions?
Conformal Coating Solutions are protective chemical coatings applied to printed circuit boards (PCBs) and other electronic components to shield them from moisture, contaminants, chemicals, and temperature fluctuations. These coatings “conform” to the surface of the electronics, providing a seamless protective layer that does not interfere with the performance of the circuitry.
Available in various formulations—such as acrylic, silicone, epoxy, urethane, and parylene—these coatings enhance the durability and performance of electronic assemblies in critical applications.
Why Are Conformal Coatings Important?
Modern electronics are becoming smaller, faster, and more integrated. But with increased complexity comes a greater risk of failure due to environmental factors. Here’s why Conformal Coating Solutions are indispensable:
1. Moisture and Humidity Protection: Humidity and condensation can cause corrosion, short circuits, and degradation. Conformal coatings provide a hydrophobic layer that resists water infiltration.
2. Chemical Resistance: Electronics exposed to cleaning agents, oils, fuels, or solvents are vulnerable to chemical damage. Coatings like urethane and parylene offer excellent resistance to such corrosive agents.
3. Dust and Debris Prevention: Tiny particles can cause electrical shorts or disrupt sensitive circuitry. A conformal layer prevents dust intrusion in compact devices.
4. Thermal Stability: Many coatings are designed to withstand extreme temperatures, ensuring stability in applications such as aerospace or automotive electronics.
5. Improved Reliability: By reducing the risk of failure, Conformal Coating Solutions increase product reliability, reduce warranty claims, and improve customer satisfaction.
Types of Conformal Coatings
Different applications require different formulations. Here are the five most commonly used types in Conformal Coating Solutions:
1. Acrylic Coatings (AR)
- Fast-drying and easy to rework
- Good humidity and fungus resistance
- Cost-effective for general applications
2. Silicone Coatings (SR)
- Ideal for high-temperature environments
- Excellent dielectric properties
- Common in automotive and LED industries
3. Urethane Coatings (UR)
- Superior resistance to chemicals and abrasion
- Used in aerospace and industrial electronics
4. Epoxy Coatings (ER)
- Tough and resistant to solvents
- Provides strong mechanical protection
- Best suited for rugged environments
5. Parylene Coatings (XY)
- Applied via vapor deposition
- Ultra-thin and uniform layer
- Excellent for medical, aerospace, and miniaturized electronics
Each formulation has unique strengths, and choosing the right one depends on your project’s environmental and mechanical requirements.
The Application Process
The effectiveness of Conformal Coating Solutions relies heavily on the application method. Precision, consistency, and cleanliness are key to a successful coating. Here’s an overview of the process:
1. Cleaning and Preparation: Before coating, PCBs must be thoroughly cleaned to remove oils, residues, and dust. Any contamination can impair coating adhesion.
2. Masking: Areas that should not be coated—like connectors or sockets—are masked with removable materials to protect them during the application.
3. Application Methods
- Brushing: Manual and used for small batches or repair work.

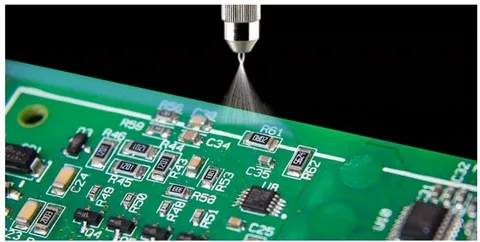

- Spraying: Common for medium to large batches; allows uniform coverage.
- Dipping: Efficient for large volumes, though may cause coating buildup.
- Selective Coating Systems: Automated systems that apply coatings precisely, reducing waste and increasing throughput.
4. Curing: Depending on the coating type, curing may involve air-drying, heat curing, or UV curing. Proper curing ensures optimal adhesion and performance.
Industries That Rely on Conformal Coating Solutions
The benefits of Conformal Coating Solutions span across multiple sectors where electronics face extreme conditions. Here are some key industries:
1. Aerospace and Defense: High-altitude environments involve dramatic temperature swings and humidity changes. Coatings provide the necessary protection for navigation systems, control units, and communications.
2. Automotive: Under-the-hood electronics endure heat, vibration, oil, and water. Silicone and urethane coatings are widely used in ECUs (electronic control units), sensors, and LED lighting systems.
3. Consumer Electronics: Smartphones, wearables, and laptops are increasingly exposed to sweat, spills, and humidity. Protective coatings extend product life and maintain performance.
4. Industrial Automation: Factories can be dusty, humid, or chemically aggressive. Coatings protect programmable logic controllers (PLCs), sensors, and robotic components.
5. Medical Devices: Sterility and reliability are critical in medical environments. Parylene coatings are biocompatible and used in pacemakers, hearing aids, and diagnostic devices.
Choosing the Right Partner
Not all Conformal Coating Solutions providers are created equal. Look for the following qualities in a coating partner:
- Proven industry experience
- Advanced testing and inspection facilities
- Compliance with international standards
- In-house engineering support
- Scalable production capabilities
A reliable partner ensures that your electronics meet the highest standards of durability and compliance.
Conclusion
As the world becomes more dependent on electronics in mission-critical applications, the need for robust protection has never been greater. Conformal Coating Solutions are the invisible guardians of electronic performance, offering unmatched reliability in the face of moisture, chemicals, vibration, and more.
By investing in the right coating solution and application expertise, manufacturers can extend product life, reduce costs, and ensure their innovations are ready for the challenges of the real world. Whether you’re developing the next generation of medical devices or building resilient industrial controllers, Conformal Coating Solutions are your first line of defense.
