In the world of electronics manufacturing, reliability and longevity are crucial factors in the success of any product. Whether it’s a smartphone, medical device, or industrial sensor, protecting the intricate components from environmental stress is essential. Conformal coating plays a vital role in ensuring that these devices can withstand harsh conditions and continue to perform optimally over time.
In this article, we will explore the importance of conformal coating in electronics, how it works, and the various types of coatings available. We will also delve into its applications across different industries and why it is essential for the long-term durability of electronic products.
What is Conformal Coating?

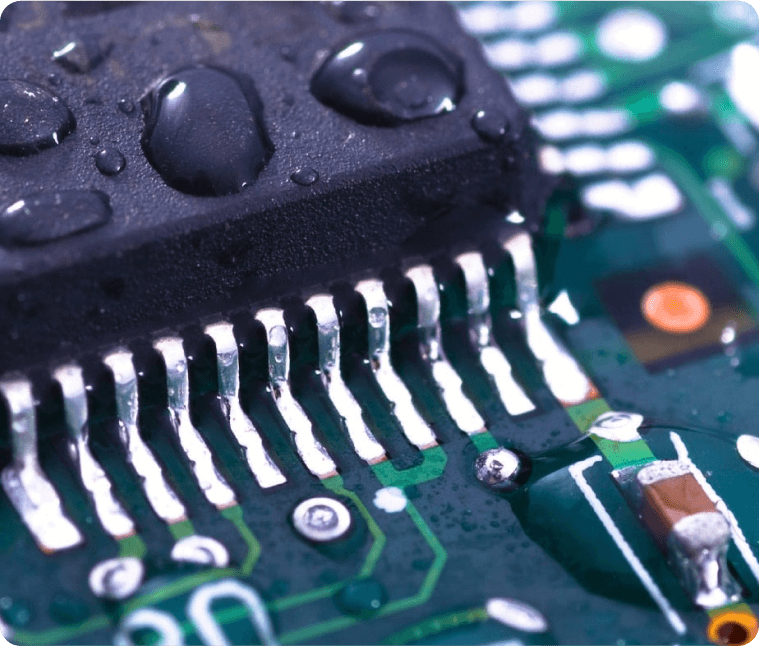

Conformal coating is a protective layer applied to electronic components and circuit boards to safeguard them from environmental factors such as moisture, dust, chemicals, and temperature fluctuations. This thin, transparent coating conforms to the shape of the surface it covers, offering protection without interfering with the performance or functionality of the underlying components.
The purpose of a conformal coating is to enhance the reliability and longevity of sensitive electronic circuits. It acts as a barrier to protect against elements that could otherwise cause corrosion, short circuits, or damage to components.
Why is Conformal Coating Important in Electronics?
1. Protection Against Moisture and Humidity
One of the most significant threats to electronic components is moisture. When electronic devices are exposed to humidity, moisture can accumulate on circuit boards, leading to corrosion, electrical shorts, and potential failures. Conformal coatings provide a moisture-resistant barrier that helps prevent this damage, ensuring that the electronics function in high-humidity environments.
For instance, outdoor electronics, such as automotive electronics or military devices, are often exposed to wet and humid conditions. In these cases, conformal coatings are critical to ensuring the reliability and operational lifespan of the devices.
2. Shielding from Dust and Contaminants
Electronics exposed to dust or airborne particles are vulnerable to malfunctions caused by these contaminants getting lodged in delicate components. The application of conformal coating forms a protective layer that prevents dust, dirt, and other environmental pollutants from settling on the circuit board, reducing the risk of failures.
In industries such as industrial automation, where machinery often operates in dusty environments, conformal coating helps to maintain the integrity of the electronics, ensuring that they operate smoothly without any interruptions caused by debris or contaminants.
3. Protection Against Chemicals and Corrosive Substances
Certain electronic devices are exposed to chemicals, oils, and solvents during their lifecycle, particularly in industries such as automotive, aerospace, and medical electronics. These substances can degrade circuit boards and components, leading to premature failures.
Conformal coatings provide a chemical-resistant layer that helps protect against damage from a wide range of substances, such as acids, cleaning agents, and solvents. This is especially important for electronic devices used in environments where they are exposed to harsh chemicals, ensuring their long-term performance and reducing maintenance needs.
4. Thermal Protection
Electronics often generate heat during operation, and excessive heat can lead to thermal damage, reduced performance, and even failure of critical components. Conformal coatings help insulate and dissipate heat, maintaining the thermal stability of the circuit boards. Some conformal coatings are designed to withstand high temperatures, making them suitable for applications in high-temperature environments like industrial machinery or automotive electronics.
5. Enhanced Reliability and Longevity
Electronics are frequently used in mission-critical applications, such as in medical devices, aviation, or military systems, where reliability is paramount. Conformal coating increases the overall reliability of electronic products by protecting against the environmental factors that can cause damage or degradation over time. This extended lifespan reduces maintenance costs and improves the overall return on investment for manufacturers and consumers alike.
Types of Conformal Coatings
There are several types of conformal coatings, each offering different levels of protection depending on the specific needs of the application. Here are the most common types of conformal coatings used in electronics:
1. Acrylic Coatings
Acrylic conformal coatings are the most widely used due to their ease of application and excellent moisture resistance. They are suitable for a wide range of electronic devices and offer good protection against dust and moisture. However, they may not be ideal for applications requiring high chemical resistance or extreme temperature tolerance.
2. Silicone Coatings
Silicone coatings are ideal for applications requiring high-temperature resistance. They offer excellent protection against both moisture and extreme temperatures, making them suitable for automotive, aerospace, and industrial applications. Silicone coatings also provide a flexible layer, making them perfect for devices that experience mechanical stress or movement.
3. Polyurethane Coatings
Polyurethane coatings are known for their abrasion resistance and chemical protection. They are commonly used in harsh industrial environments and offer superior protection against oils, solvents, and other chemicals. Polyurethane coatings are often used in high-stress applications, where physical durability is essential.
4. Epoxy Coatings
Epoxy coatings are known for their strong adhesion and durability. They provide excellent protection against moisture, dust, and chemicals, but they are typically less flexible than silicone or polyurethane coatings. Epoxy coatings are ideal for applications where high chemical resistance and mechanical protection are needed.
5. Parylene Coatings
Parylene is a unique conformal coating that is applied through a vapor deposition process. It offers a very thin, uniform coating that provides excellent protection against moisture, dust, and chemicals. Parylene coatings are commonly used in medical devices and aerospace electronics, where precision and reliability are critical.
Applications of Conformal Coatings
Conformal coatings are used across a wide range of industries to protect electronics from environmental factors. Some of the most common applications include:
1. Automotive Electronics
Automotive electronics are exposed to extreme temperatures, vibrations, and moisture. Conformal coatings help protect these devices from environmental stress, ensuring that sensors, control units, and other automotive electronics continue to function reliably over time.
2. Aerospace and Defense
Aerospace and defense systems rely heavily on electronics, often in extreme conditions. Conformal coatings provide protection against moisture, corrosion, and mechanical wear, making them an essential part of military electronics and aviation components.
3. Medical Devices
Medical electronics, such as implantable devices, diagnostic equipment, and monitoring systems, require high reliability and safety standards. Conformal coatings protect these devices from moisture, contamination, and physical damage, ensuring their safe operation.
4. Consumer Electronics
Consumer electronics such as smartphones, tablets, and wearables benefit from conformal coatings that provide moisture resistance and prevent damage from everyday use. Coatings also help protect devices from cosmetic damage caused by dust and debris.
5. Industrial Electronics
Industrial electronics are exposed to harsh environmental conditions, such as high temperatures, dust, and chemical substances. Conformal coatings ensure that industrial sensors, controllers, and other devices continue to operate in these demanding environments.
Conclusion
Conformal coating is a critical process in the electronics manufacturing industry, offering essential protection against environmental factors that can lead to failure or reduced performance. By enhancing moisture resistance, dust protection, chemical shielding, and thermal stability, conformal coatings increase the reliability, longevity, and durability of electronic devices.
As the demand for electronics continues to grow across various industries, conformal coatings will remain a vital solution for ensuring that devices can withstand the rigors of modern-day environments. By understanding the importance of conformal coating and selecting the appropriate type for each application, manufacturers can enhance the performance and lifespan of their electronic products.
